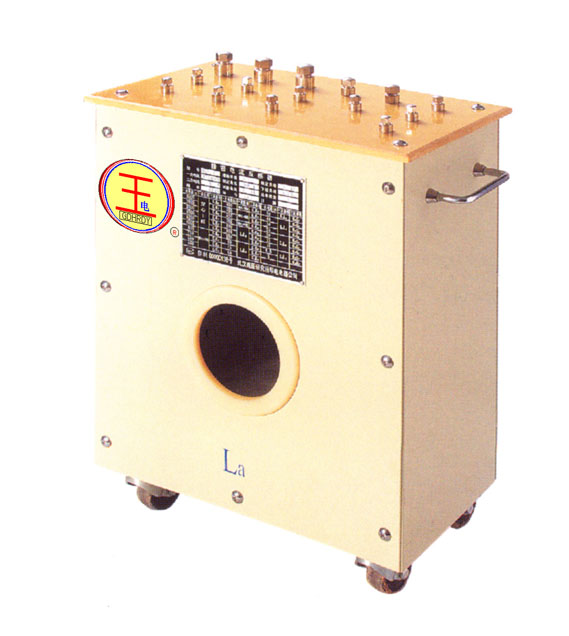

HRHL-precision standard current transformer |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
HRHL-precision standard current transformer |
|
| |
|
|
| |
The standard current transformer used to verify the 0.01 level the following current transformer.
The standard current transformer is a winding, secondary windings.
Features:
Users can specify criteria on the nameplate current ratio for verification.
Can be 5 / 5 or 1 / 1 current ratio from the school.
The instrument with castors for easy transportation.
Specifications:
Temperature: -5 ¡æ ~ +40 ¡æ
Humidity: £¼80%
Capacity: 5VA
Power Factor: COS¦Õ = 0.8, 1.0
Rated current to allow long-term work, 150A over mandrel
Standard current ratio: 0.1A ~ 20000A/5A, 1A
Primary current: 0.1A ~ 20000A
Secondary current: 5A or 1A, it can be two-transformation ratio 1A and 5A |
|
| |
|
|
| |

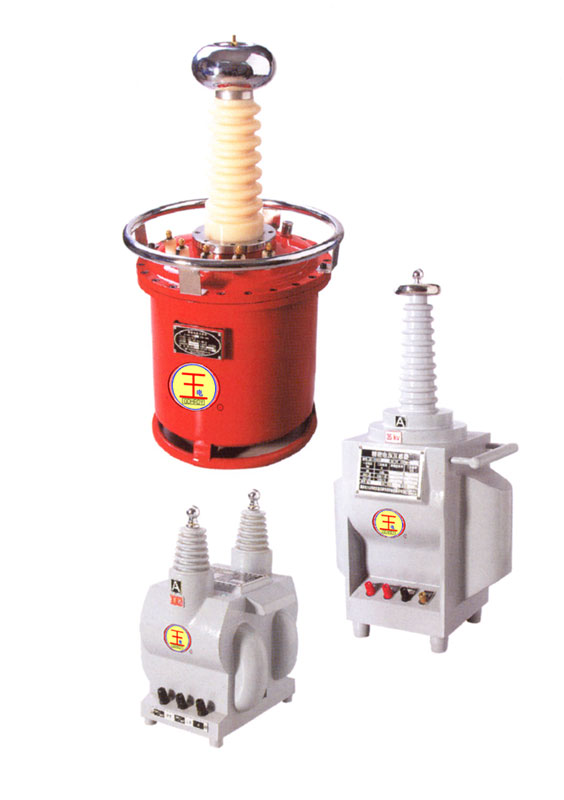

HRHJ-precision standard voltage transformer |
|
| |
|
|
| |
This equipment is mainly for primary power supply and the actual needs of the production sector carefully designed and manufactured, the company provides inflatable voltage standard transformer, standard voltage oil-immersed transformer, dry standard voltage transformer.
Features:
Compact structure, small size, easy to carry;
No maintenance, wiring, simple operation;
Secondary load can be customized 5VA standard transformer, standard conventional 0.2VA transformer secondary load can stock
Specifications:
Temperature: -5 ¡æ ~ +40 ¡æ
Humidity: £¼80%
Primary Voltage: 1kV ~ 550kV
Secondary voltage: 100V, 100 / ¡Ì 3V, 100/3V
Voltage range: 20% ~ 120%
Power Factor: COS¦Õ = 0.8, 1.0
Accuracy: 0.05 ~ 0.01
Insulation Method: semi-insulating and full insulation.
Single-phase voltage transformer and three-phase voltage transformer. |
|
| |
|
|
| |
|
|
|
|
