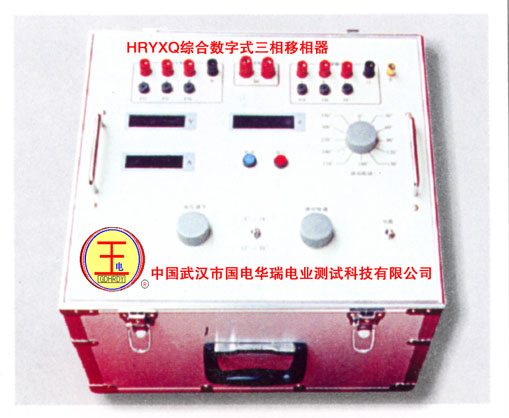

HRYXQ Comprehensive Digital Three-phase Shifter


  Main functions and features:
With high accuracy of phase-shifter regulation, accuracy of reading and regulable output voltage, it combines the phase-shifter technology of transformers and digital measuring technology, can meet the test for high accuracy single phase (and three-phase) alternating frequency. So it features in easy-operation, small size, low noise, and good output waveforms.
The key technical indexes:
Input power source: three-phase and four lines
Output voltage: 3¡Á£¨0¡«380£©/£¨0¡«220£© 3.5 digits indicating accuracy: ¡À1.0%
Maximal output capacity: 3¡Á330VA
Output current:0¡«20A
General three-phase regulation : 0¡ã¡«360¡ã
Refined three-phase regulation: -3¡ã¡«18¡ã£¬12¡ã¡«33¡ã(regulable), four digits indicating accuracy: ¡À1.0%
Voltage fluctuation: general regulation¡Ü1.5% refined regulation¡Ü2.0%
Weight: 25kg
