HRYDQ (W) Series of High-voltage Tester of Industrial Frequency Non-partial Discharge for Ultra-light-type Gas-filled-type Transformer


  Introduction of A and B

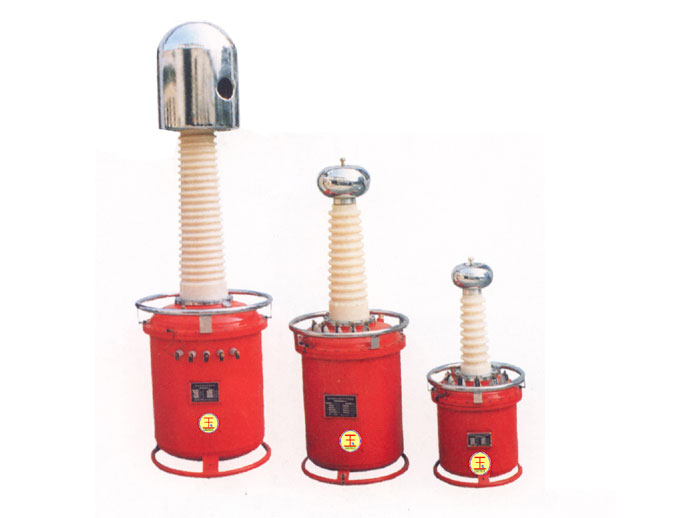

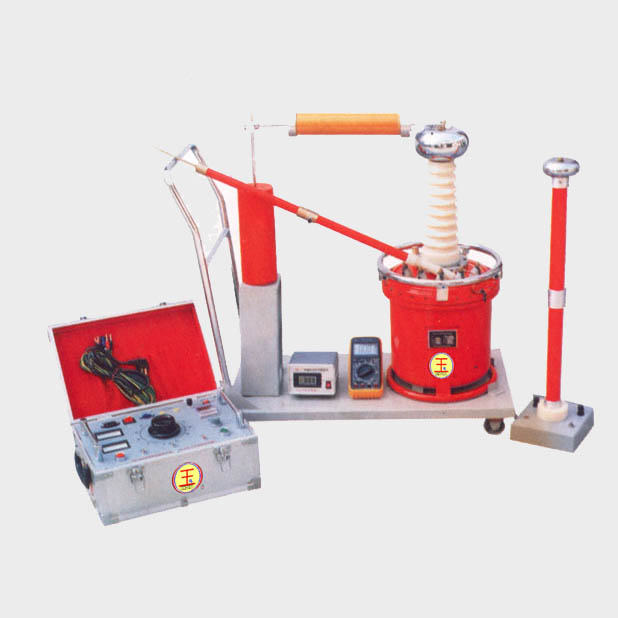

As the only one of applying the SF6 gas-isolated technology, it replaces the oil-immersed transformer by the small volume, light weight, stabilization, and little-current of partial discharge. The voltage capacity of single transformer can even reach 1000kVA/1000kV. It¡¯s also environment-friendly, free of maintenance, long using term, and excellent performances.

As the national new product and patented product, it¡¯s particularly applicable in partial discharge test of 110kV and 220kV electrical devices. And it¡¯s the new generation of ideal high-voltage testing devices with two kinds of products, the metal & dielectric shell and the singe ¨Cstage & cascade voltage. It can also be used in the environment of cold and high latitude districts, like altiplanocie




Output voltage 50kV 100kV 150kV 200kV 250kV 300kV
Input voltage 200V 200V 400V 400V 400V 400V
Rated voltage of Partial discharge ¡Ü5pC ¡Ü5pC ¡Ü5pC ¡Ü5pC ¡Ü5pC ¡Ü5pC
Impedance voltage £¼8% £¼8% £¼8% £¼10% £¼10% £¼10%
No-load current ¡Ü4% ¡Ü4% ¡Ü4% ¡Ü5% ¡Ü5% ¡Ü5%
Waveform distortion £¼3% £¼3% £¼3% £¼3% £¼3% £¼3%
Air pressure£¨Mpa£© 0.4 0.4 0.5 0.5 0.5 0.5

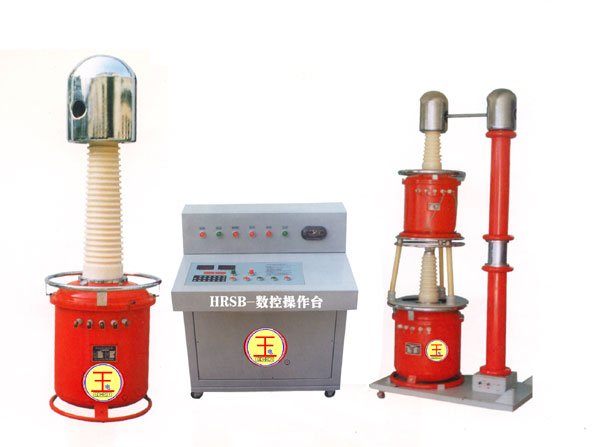

  C. Control Cabinet (Console) and Numerical Control Console for Testing Transformer
As upgrade replacement of high-voltage testing equipment, this kind of testing transformer console applies the automatic control of microcomputer, which is especially useful in automatically controlling system of high-voltage tester of non-partial discharge. It is the first testing console ever made in china, which makes high-voltage testing easier to carry out.


1. Numerical control and manual control
2. Microcomputer to control adjustable voltage speed and output voltage.
3. Multiple over-current and over-voltage protection
4. Automatic discharge voltage recorder
5. Preset operating data through keyboard
6. timer-setting (automatically or manually)

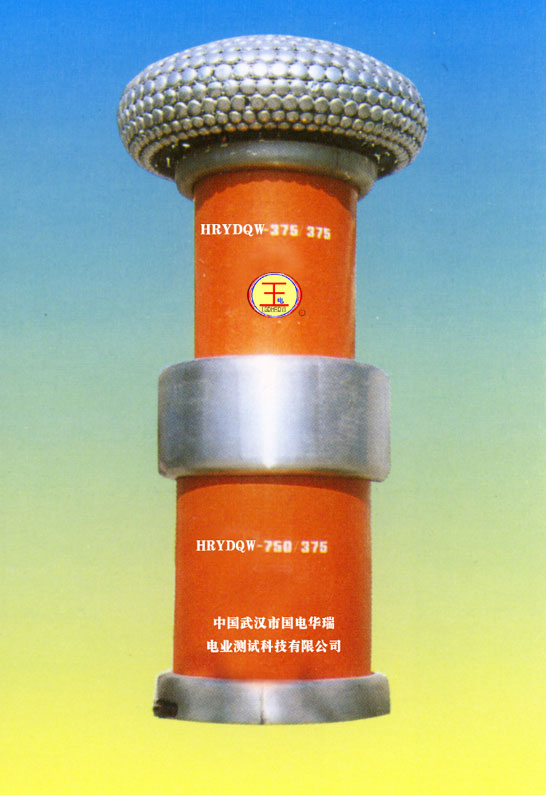

  D. Series of Complete Set of High-voltage Tester of Insulated Barrel Industrial Frequency Non-partial Discharge for Gas-filled-type Transformer
Air-filled non-partial discharge power frequency ultra-light high-voltage testing transformer

Output voltage: 50-1600kV
Output capacity: 1-1200kVA
