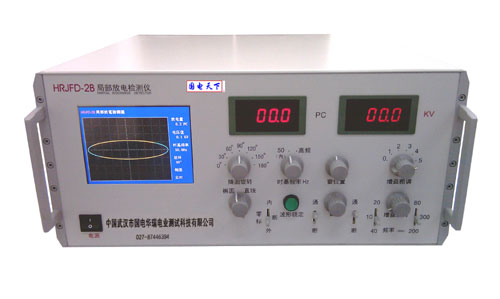

HRJFD-2B Type Digital Partial Discharge Detecting Analytic System |
|
| |
|
|
| |
The HRJFD system has carried the ultrasonic measurement to the local discharge of the hundreds of transformers and reactor in Gezhou Dam 500kV switch station, Wuhan Phoenix Mountain 500kV transformer substation, Shengyang transformer factory, Hefei transformer factory, Hengyang transformer factory, Guangzhou power supply bureau, Hunan electricity generating board, Chongqing transformers factory and Wuhan steel. This system has the advantage of operation reliable and easy to operate. It can meet the needs of measurement. As one of the key items of the of eight-five project, this electrical device has been widely used for the spot test and research in the related unit in the north, east, central and northwest parts of China.
The system has functions of hundred-percent process controlling mode and menu prompt in Chinese character. It can access and print arbitrarily. It can automatically generate survey reports and display two-dimensional and three-dimensional local discharge atlases. It is made by adopting the skin window technique and has a good capacity of resisting disturbance. It takes the techniques of two channel measurement and digital difference technique which is able to measure the local discharge signal of two samples or the two testing point of one sample. That is convenient for analyzing the origin of the local discharge signal. This product is the national key scientific and technological project and the extension project of the ministry of electric power. It has been tested in hundreds of transformers such as the Gezhou Dam 500kV switch station, Wuhan phoenix mountain 500kV transformer substation and Shenyang transformer factory. It is reliable and easy to operate.
It is specially applied for measuring the local discharge of the eclectic devices such as the transformer, the electrical motor, the mutual inductor, the capacitor, the cable, the GIS, the switches and the lighting arrester. The performance is complied with the standard of IEC-270 and GB7354. It has the hundred-percent Chinese software and the menu mode operation. The measurement and analysis of the local discharge graph data can be arbitrarily accessed and printed. It has two channels and can produce test report automatically. It has many colorful display modes those are ellipse, straight line, two-dimension and three-dimension.
Detection sensitivity: 0.5pC
Measuring frequency bandwidth: 1-200 kHz
Gain dynamic range: above 120dB
Sampling precision: 8 bit ¡À1/2LSB
The whole equipment also includes the mainframe, display and print. (It¡¯s not including the voltage part)
|
|
| |
|
|
| |
|
|
| |
|
|
| |

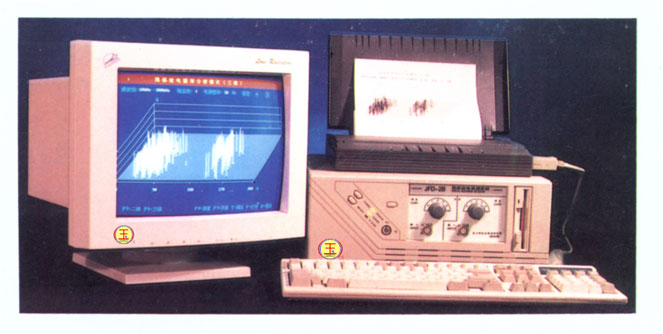

HRJFD Type Digital Partial Discharge Detecting System |
|
| |
|
|
| |
|
|
| |
|
|
| |
HRJFD-3A Type Digital Partial Discharge Detector
|
|
| |
|
|
| |
|
|
| |

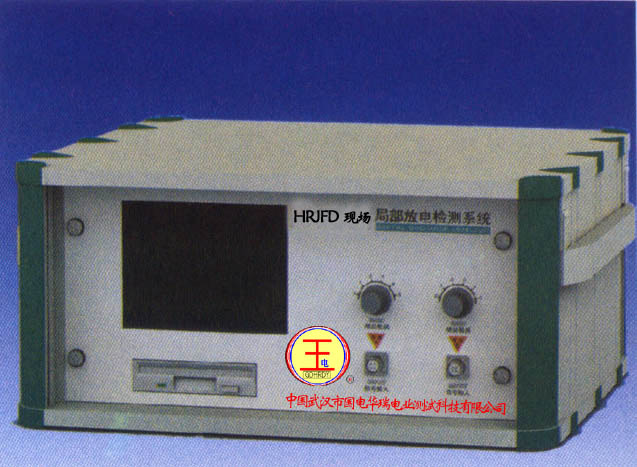

HRJFD Type On-Site Digital Partial Discharge Detecting Analytic System |
|
| |
|
|
| |
This system is specially applied for the field and spot check work in the electric equipment manufacturer, electricity generating and supplying department, electrical power construction, electrical installation and debugging construction enterprises. It is very convenient for measuring and fixing the database which is easy for further analysis and management.
Technical parameter:
Measuring channel: two channels
Detection sensitivity: 0.1PC
Measuring frequency range: 3dB bandwidth 10kHz~300 kHz
Cell-type filter setting stage:
Low end 10£¬20£¬40kHz
High end 100£¬200£¬300kHz
Gain dynamic range: 120dB
Synchronizing frequency: 50,100,150,200 or any Hz
Standard pulse generator: HRJFD-301
Full sized pulse voltage: 10V£¬5V£¬2V£¬1V£¬0.5V£¬0.2V (adjustable)
Calibration capacity: 50pF, 200pF (adjustable)
Working power supply: AC220V¡À10%£¬50Hz
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |

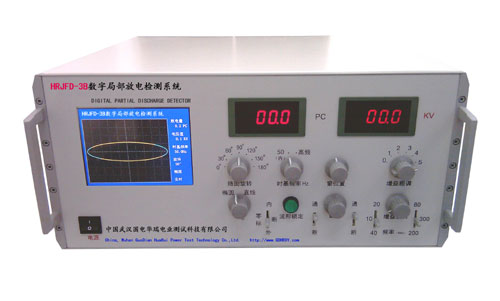

Digital partial discharge detection system |
|
| |
|
|
| |
Digital partial discharge detection system |
|
| |
|
|
| |
HRJFD-2A Type Local Discharge Ultrasonic Automatic Positioning Device
|
|
| |
|
|
| |
The failure testing and positioning of operating the medium and large sized transformers have always been the points that electrical engineers focus for a long time. The HRJFD-2A system, manufactured in the large-sized transformer local discharge ultrasonic position method and equipment research subject which is one of the national key scientific and technological project has provided an effective solution.
The HRJFD-2A system has carried the ultrasonic measurement to the local discharge of the hundreds of transformers and reactor in Gezhou Dam 500kV switch station, Wuhan Phoenix Mountain 500kV transformer substation, Shengyang transformer factory, Hefei transformer factory, Hengyang transformer factory, Guangzhou power supply bureau, Hunan electricity generating board, Chongqing transformers factory and Wuhan steel. This system has the advantage of operation reliable and easy to operate. It can meet the needs of measurement. As one of the key items of the of eight-five project, this electrical device has been widely used for the spot test and research in the related unit in the north, east, central and northwest parts of China.
The HRJFD-2A ultrasonic positioning system which is including the high performance computer, high-sensitivity local discharge sound probe, programmed amplified filter, high-speed A/D transducer, transient waveform recording, signal analysis and fault location software is applied for acquiring, measuring, analyzing, positioning and spot observing the local discharge ultrasonic signal in the large-sized transformer, oil-immersed high voltage electrical apparatus and the GIS electrical operation equipment.
The HRJFD-2A ultrasonic positioning system can position the fault and the error is less than 250mm. The whole measuring system can find out the local discharge ultrasonic signal which is less than 1000pC.
Functions and characteristics:
(1) Making the detecting operation of local discharge ultrasonic more convenient and the analyzing more simple under the platform of the windows.
(2) Making the signal acquired more reliably for the ultrasonic sensor has the performance of low noise, high-sensitivity and anti-jamming.
(3) Making the spot testing more flexible with the local discharge ultrasonic signal electrical-acoustical position and acoustical-acoustical position functions
(4) Making the result of the position more precisely by choosing freely the spherical position calculation and the hyperboloid position calculation of the ultrasonic signal.
(5) Showing the position coordinates by ultrasonic probe and the locating point by solid geometric drawing.
(6) Convenient for building the measuring and positioning database for further analyzing and managing.
(7) Be the local discharge on-line detecting instrument which is useful for detecting the local generating and developing.
Technical parameter:
The sensitivity of the ultrasonic probe: -150dB
A/D conversion accuracy: 8bit¡À1/2LSB
Sample length: 32k/channel
Minimum detectable discharge:£¼50pC (laboratory)£¼300(1000)pC (spot)
Minimum positional error:£¼50mm(laboratory)£¼ 250mm (spot)
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
