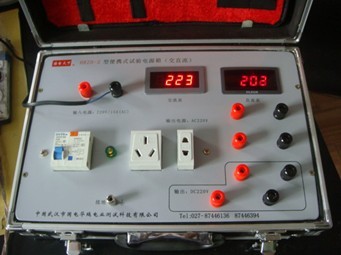

HRZD-2 type portable power box single-phase tests
|
|
| |
|
|
| |
Power supply box is mainly for construction work in the field test equipment or instrumentation other occasions there is a demand to provide multi-channel distribution operation of the test power. Power boxes are used 220V or 380V AC input power, output current characteristics, electrical switches can be single points, single co-operation of the power supply. Our company produces the power box, and the small size, light weight, easy to carry, especially suitable for electrical equipment on-site commissioning. Standard configuration is a pure exchange type of the pointer display device.
Description: The DC output can be customized or digital display or output AC / DC power supply continuous stepless adjustable function, users can choose according to demand order: Another part of the cost of custom design.
Model Name: HRZD-2-220V single-phase test portable power box
Input voltage: AC 220V, 50Hz
Output Voltage: AC 220V, 50Hz (DC: 220V to be customized)
Output rated current: 15A single-phase AC
Leakage protection: 220V 15A
Action current <30mA
Operating time <0.1S
Weight: 6kg
Size: 400x300x150 (H) mm
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
